Replacing the brake disc and wheel bearing is essential for both safety and driving comfort. In this guide, we show you how to do it yourself on Aixam microcars such as City, Coupe, Crossline, Crossover, Minauto & GTO from 2010 onwards (S8, S9, S10 series). Here’s a step-by-step guide, but please note that we do not take responsibility for the replacement – check yourself which tools are needed and the correct torque specifications for your specific Aixam model.
Spare parts you need:

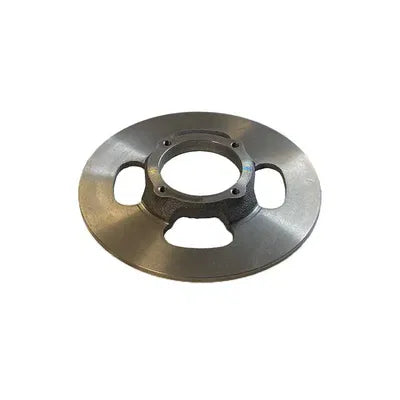

- Front brake disc – Aixam 2010 and onwards (220 mm)
- Front wheel bearing – 30x60x37 mm (also fits Aixam)
Required Tools
- Socket wrenches: 16, 17, 19, 24 mm
- Allen keys & Torx
- Ball joint puller
- Press & puller
- Thread locker (Loctite)
- Safety glasses & gloves
Step-by-Step Instructions
1. Remove the Wheel and Brake Caliper
- Lift the car and loosen the wheel nuts (torque: 45 Nm)
- Remove the wheel and loosen the hub nut (torque: 125 Nm)
- Unscrew the brake caliper bolts (torque: 25 Nm) and hang the caliper securely
2. Free the Steering and Drive Shaft
- Loosen the tie rod end (torque: 46 Nm) and lower ball joint (torque: 46 Nm)
- Remove the shock absorber mounting bolts (torque: 32 Nm)
- Take out the outer part of the drive shaft and hub
3. Remove Brake Disc and Wheel Bearing
- Pull out the hub and separate the brake disc
- Use a press to remove the bearing
- Clean thoroughly before installing the new bearing
4. Install New Parts
- Press in the new wheel bearing (check orientation!)
- Mount the brake disc and apply thread locker
- Reassemble everything in reverse order
Important Torque Specifications (Nm)
Part | Torque |
---|---|
Wheel nuts | 45 Nm |
Hub nut | 125 Nm |
Brake caliper bolts | 25 Nm |
Tie rod / ball joint | 46 Nm |
Shock absorber mount | 32 Nm |
Tips from Us
- ✔️ Make sure the bearing is correctly oriented before pressing
- ✔️ Always use thread locker on disc and caliper bolts
- ✔️ The brake disc must not be installed backward
